01Function: Concrete Mixing, Pumping, Placing
02Vertical Reaching Distance Is Up To 38m
03Concrete Pan Mixer Improves Mixing Efficiency
A concrete boom mixer pump truck is the latest product developed by our AIMIX GROUP to provide our customers with a more compact and convenient concrete mixing + pumping solution. It merges the functions of a concrete mixer and a concrete boom pump, making it an ideal addition to a fleet of concrete pumps. Equipped with either a wheel or crawler chassis, it is always prepared for trips to smaller construction sites, canal projects, and more. These versatile machines not only transport concrete to the site but also pour it into place.
Main Functions Of Concrete Boom Mixer Pump Truck
1. High mixing efficiency
2. Mixing capacity is higher than conveying capacity
1. No need to install additional pump pipes
2. Convenient for moving and transfer
1. High flexibility
2. Fast transition
1. Suitable for various road conditions
2. Remote control walking
Models of Boom Mixer Pump
AIMIX provides wheel mixer pump, crawler mixer pump and truck mixer pump. All types of mixer pumps are highly flexible, with fast transfer and high safety during construction. However, crawler mixing pumps are mainly used in mountainous areas with poor road conditions and canal construction projects, while wheel-type and truck-type mixing pumps are suitable for construction sites with flat roads and sufficient width.

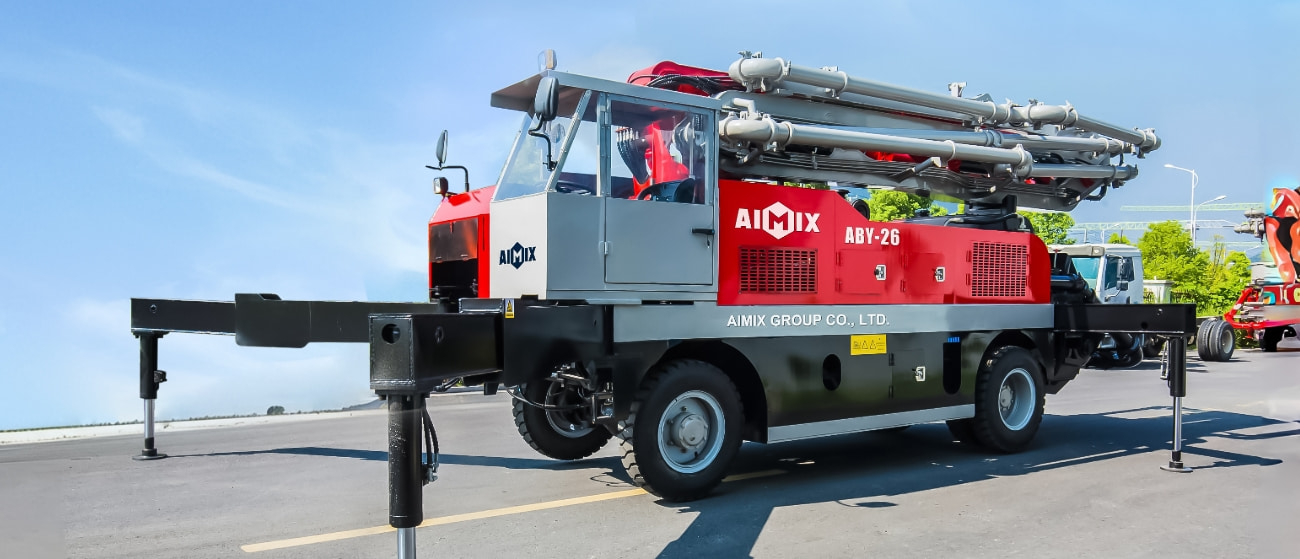

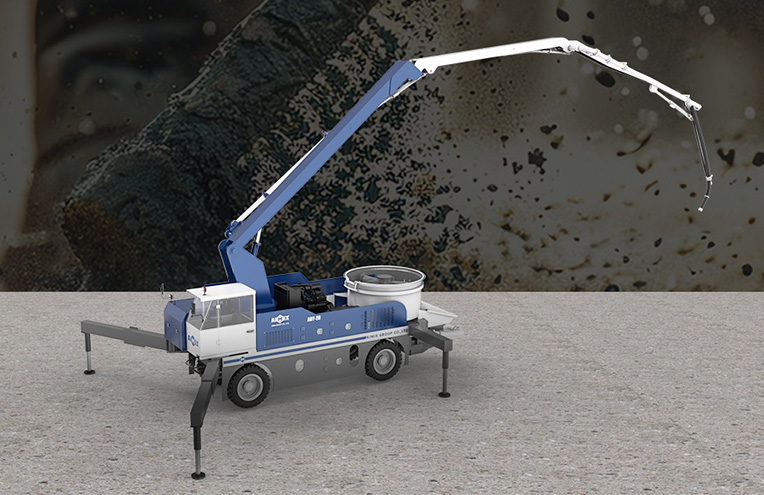

ABY Wheel-type Boom Mixer Pump
20m
26m
30m
33m
38m
Max Concrete Output: 89m³/h
Hot Models: 20m, 26m
Boom sections: 4
Mixer: New Pan Mixer
Application: Mainly used in rural civil construction and drain construction, etc.
Get A Quote

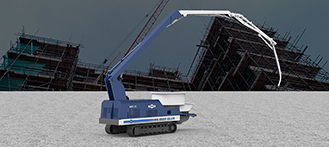

ABY Crawler-type Boom Mixer Pump
8m
15m
18m
20m
25m
Concrete output max: 50m³/h
Hot Models: 18m
Boom sections: 4
Mixer: New Pan Mixer
Application: Mainly used in mountainous areas, farmland drainage, and places that concrete transport trucks cannot reach.
Get A Quote

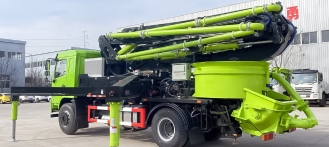

ABY Truck-type Boom Mixer Pump
26m
30m
33m
38m
Max Concrete Output: 120m³/h
Hot Models: 33m
Boom sections: 5
Mixer: New Pan Mixer
Application: Ideal for farmland drainage, rural civil construction, etc. It can reach any place, especially in narrow working spaces.
Get A Quote

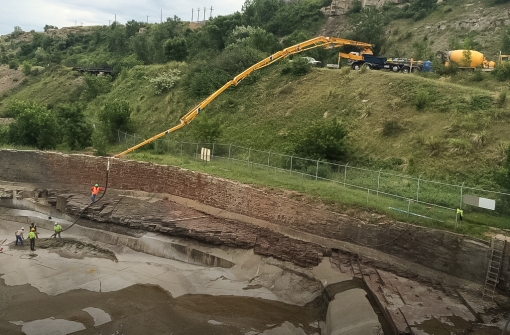

Applicable Working Conditions
Advantages Comparison
| Parameters |
 |
 |
 |
| Mixing Capacity(m³/h) | Up to 89m³/h | Up to 50m³/h | 120m³/h |
| Pumping Reach Distance(m) | 18m, 20m, 26m | 8m, 15m, 18m, 20m, 25m | 26m, 30m, 33m, 38m |
| Walking Mode | Wheel chasis; Someone needs to be in the cab to operate; | Crawler chasis; Remote control available; | Truck chasis; It moves in the same way as a normal mixing tank truck and needs to be driven by a driver. |
Core Upgrade Points
